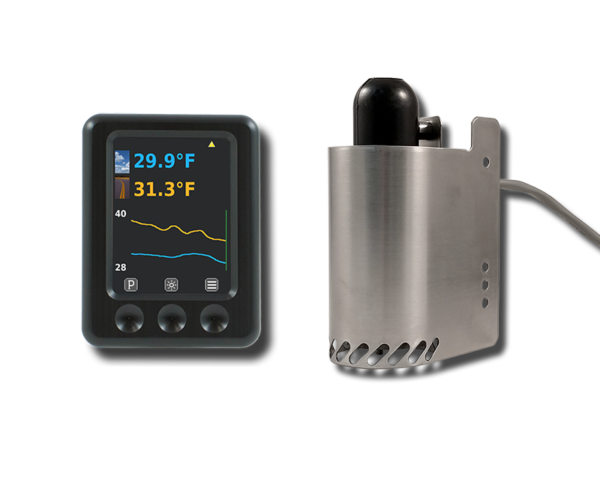

Mobile Surface Sentinel – Model 5436-10

The Mobile Surface Sentinel, Model 5436-10, provides accurate surface temperature and air temperature, in real-time, from a moving vehicle to an in-cab display unit.

FEATURES:

  • Rapid environmental acclimation rate
  • Sensor-to-Display wireless connection
  • Color LCD display
  • Fully sealed weatherproof design
  • Integrates with existing AVL systems
SKU: 5436-10 Categories: , ,

Description

The Model 5436-10 Mobile Surface Sentinel is a precision instrument that provides accurate real-time surface temperature and air temperature from a moving vehicle to an in-cab color LCD display. The dynamic flashing colored display alarm alerts vehicle operators of freezing conditions. Premium materials are used to ensure rapid temperature response rates that meet the demands of road weather management professionals.

The Mobile Surface Sentinel sensor connects to the Mobile Display Unit (MDU) via wireless Bluetooth for simple installation without the need to route wires from outside to inside the vehicle. Simply connect each unit to a vehicle power source. The sensor mounts outside the vehicle, pointed at the road surface. The MDU mounts inside the vehicle to display the road surface and air temperature as a number and a graph. The display uses a high resolution color LCD that is configured with an easy to navigate menu. A menu-selectable RS-232 or RS-485 serial output is made available via a connector with screw terminals on the back of the MDU for easy integration into new or existing Automated Vehicle Location (AVL) units.

Highlights:

  • Road weather management. Actionable measurements save on material by adjusting application rates in real-time
  • Fleet management. Track your assets in real time when combined with the Model 5437 MPU and Contrail® for Road Weather software. Or, integrate into existing AVL systems with the sensors open-architecture data output
  • Thermal mapping tool. Know where trouble spots are on the roadway by mapping out the thermal characteristics
  • Road Weather Information System (RWIS). Fill in gaps of an existing RWIS network to better understand the current state of the road system
  • Summer road maintenance. Alert paint striping crews that the road is ready to start work

Applications

  • Assists road weather professionals in determining chemical type and application rates for winter maintenance operations
  • Tool for thermal mapping when connected to on-board controllers or AVL
  • Provides a low cost way to fill in gaps between existing road weather stations (RWIS)
  • Alerts paint stripe crews that the road temperature is ready to start work

Specifications

Mobile Surface Sentinel Sensor

Range 1.5 to 15 ft (0.5 to 4.5 m)
Angle 0 to 10° from vertical
Field of View 10°, 10.5 inch (27.7 cm) circle at 5.0 ft (1.5 m)
Surface Temperature Range -40° to 185°F (-40° to 85°C)
Surface Temperature Accuracy ±1° at 32°F otherwise ±2°F (±0.5°C at 0°C otherwise ±1°C)
Air Temperature Range -40° to 185°F (-40° to 85°C)
Air Temperature Accuracy 0.45°F (±0.25°C) Typical
Supply Voltage 9-30 VDC, Reverse Polarity Protected
Average Current Consumption 0.21 Watts, active mode; 0.05 Watts, standby mode (MDU off)
IR Sensor Emissivity 0.96
Sampling Period 100 ms, or 10 times per second
Data Reporting Period ½ second
Communications Bluetooth to MDU
Materials Hard Anodized Aluminum, Stainless Steel, Epoxy Resin
Power Cable 10 ft (3 m) standard, 105°C, PVC jacket, 18 AWG
Operating Environmental Temperature 40 to 185°F (-40 to 85°C)
Dimensions 5.5 x 2.3 x 3.6 inch (14.0 x 5.8 x 9.1 cm)
Weight 0.7 Lbs (0.30 kg)
Shipping Weight 2 Lbs (0.91 kg)



Mobile Display Unit (MDU)

LCD Resolution 240 x 320 pixels
Display update period ½ second typical, or as data arrives
Units of measure °F or °C (user-selectable)
Supply Voltage 9-30 VDC, Reverse Polarity Protected
Average Current Consumption 1.2 Watts
Buttons Capacitive Touch
Light Sensor Photo-diode
Communications Bluetooth, RS-232, RS-485
Materials Acetal Resin
Power Cable 10 ft (3 m) standard
Operating Temperature -4 to 140°F (-20 to 60°C)
Operating Humidity 10 to 90% Non-condensing
Dimensions 3.0 x 2.3 x 2.0 inch (7.6 x 5.7 x 5.1 cm) with ball head
Weight 0.7 Lbs (0.30 kg)
Shipping Weight 1 Lbs (0.45 kg)

Ordering Guide



Model 5436-10 Mobile Surface Sentinel with Mobile Display Unit kit
Model 5436-01 Mobile Display Unit (replacement)
Model 5436-12 Mobile Surface Sentinel (replacement)
Model 5100-00 MSS Additional Sensor Cable (per foot)
Model 5436-61 MDU Vehicle 12 VDC Power Receptacle Cable
Model 5436-65 USB to serial cable with bare leads
Model 5436-70 MSS Universal Mounting Bracket
Model 5436-71 MSS Mirror and Bumper Mount
Model 5436-73 MSS License Plate Mounting Bracket
Model 5436-80 MDU Universal Mounting Bracket
Model 5436-81 MDU Dash Mount
Model 5436-82 MDU 2 inch Gauge Mount

Warranty:  2 Years



Support

Warranty: 2 Years
